Medical Aseptic Sealing Machine | Medical sterile sealing machine | Medical blister sealing machine

Model: PXMP-F3045P

fully all-inclusive structure,Medical sterile sealing machines are used for sealing the packaging of Class II and Class III medical devices, mainly for heat sealing Tyvek and PTEG blister boxes. The whole machine is made of 304 stainless steel and meets the usage requirements of A-level purification workshops.

fully all-inclusive structure,Medical sterile sealing machines are used for sealing the packaging of Class II and Class III medical devices, mainly for heat sealing Tyvek and PTEG blister boxes. The whole machine is made of 304 stainless steel and meets the usage requirements of A-level purification workshops.

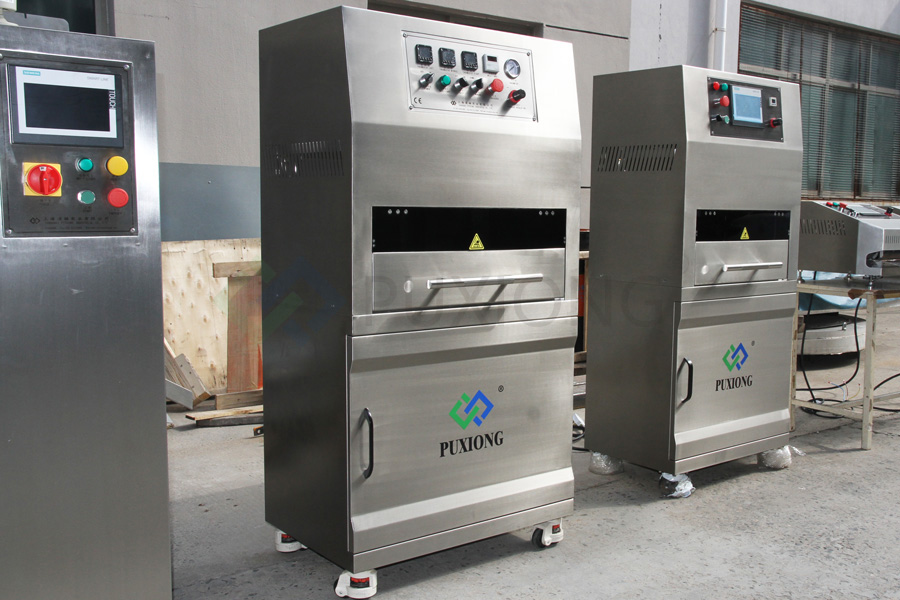

This medical blister box sealing machine features a fully enclosed structure that is easy to clean. It is available in two models: one with a PLC control panel and the other with a mechanical control panel.

This medical blister box sealing machine features a fully enclosed structure that is easy to clean. It is available in two models: one with a PLC control panel and the other with a mechanical control panel.

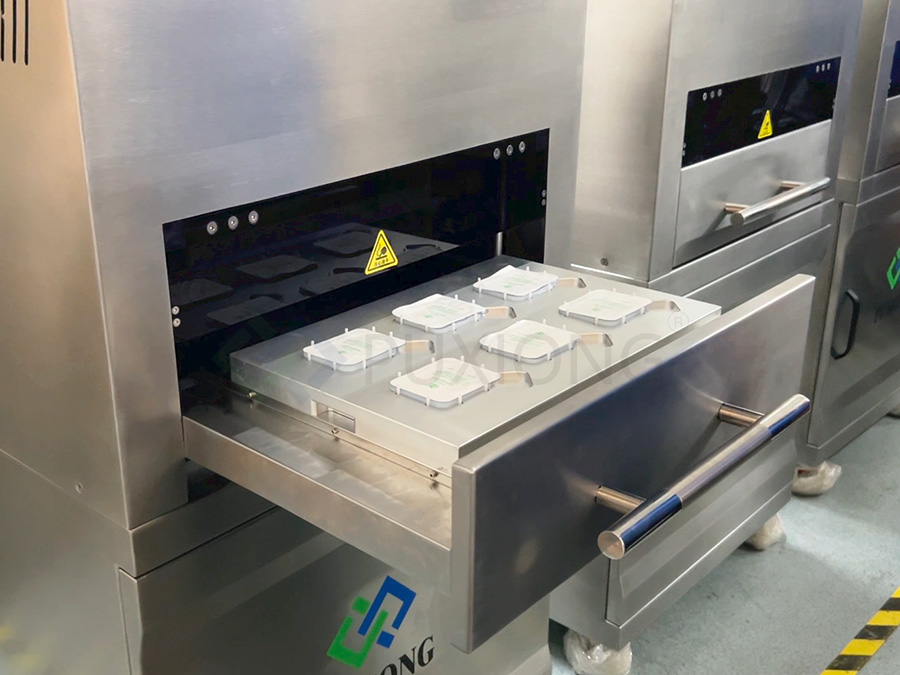

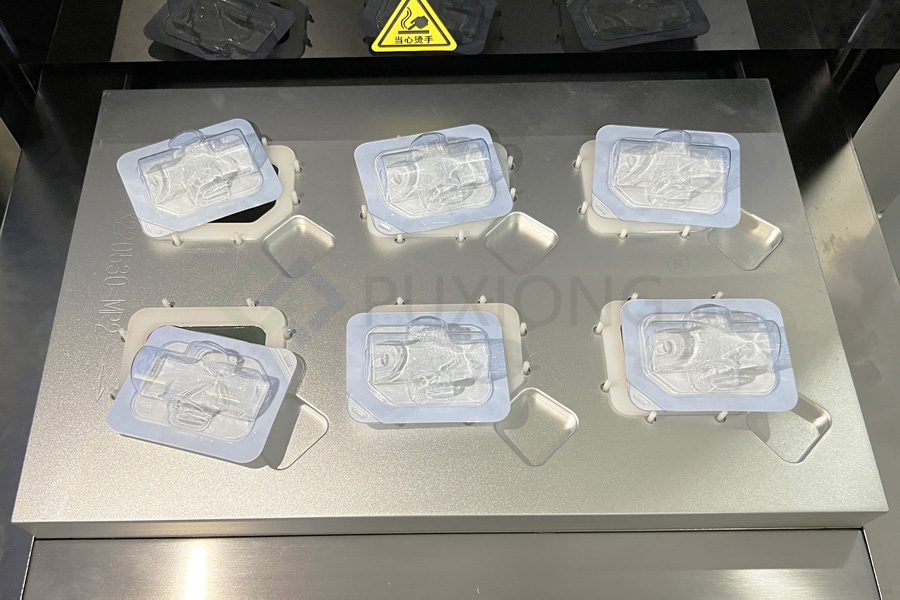

Convenient mold customization: Different sealing molds are designed according to the different sizes of PETG blister boxes

Convenient mold customization: Different sealing molds are designed according to the different sizes of PETG blister boxes

The F3045P medical sterile sealing machine has storage space in the bottom box. The PLC version of this equipment features advanced functions such as data storage, fault alarm, process formula design, data export, and temperature curve

The F3045P medical sterile sealing machine has storage space in the bottom box. The PLC version of this equipment features advanced functions such as data storage, fault alarm, process formula design, data export, and temperature curve

Specification Parameter

Model: PXMP-F3045P
Version: Mechanical ( M); PLC ( P ); Computer ( C )

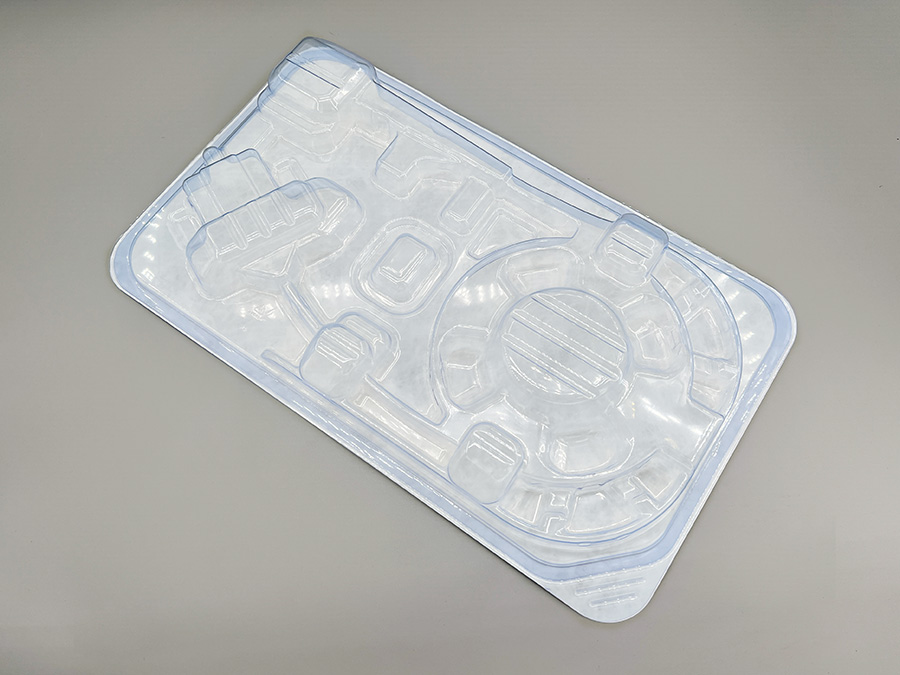

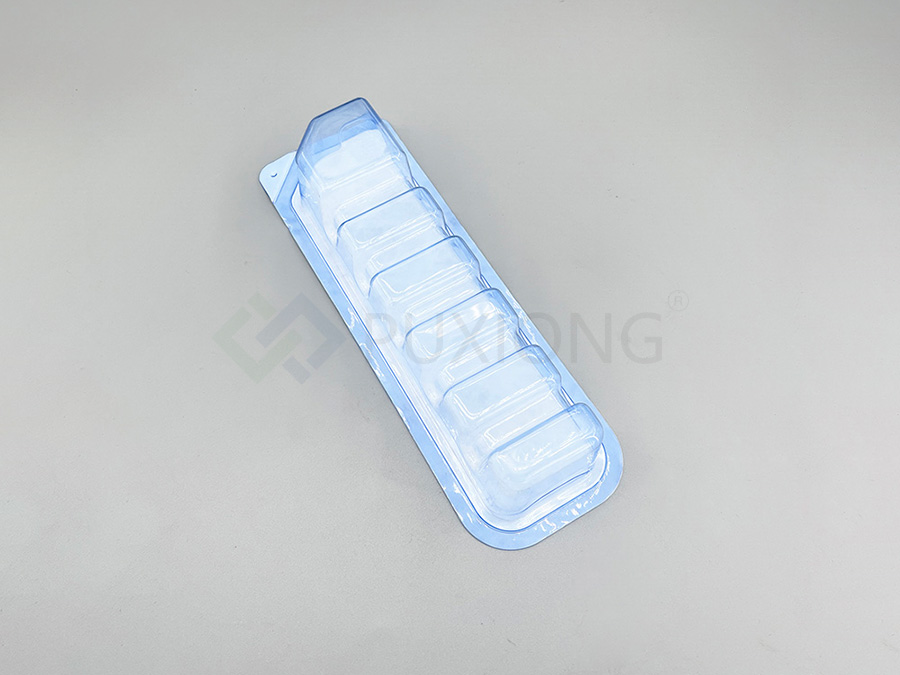

Usage: sealing PETG/PET/PS/PP blisters and top cover of tyvek/aluminum foil
Power: 3 KW
Voltage: 380V ( customized )
Pressure Mode: pneumatic,≤0.6MPA
Slide Way: manual
Heating Plate Size: 300mm*450mm
Weight: 300 KG
Overall Dimension: L710mm*W640mm*H1610mm

description

  • fully all-inclusive structure

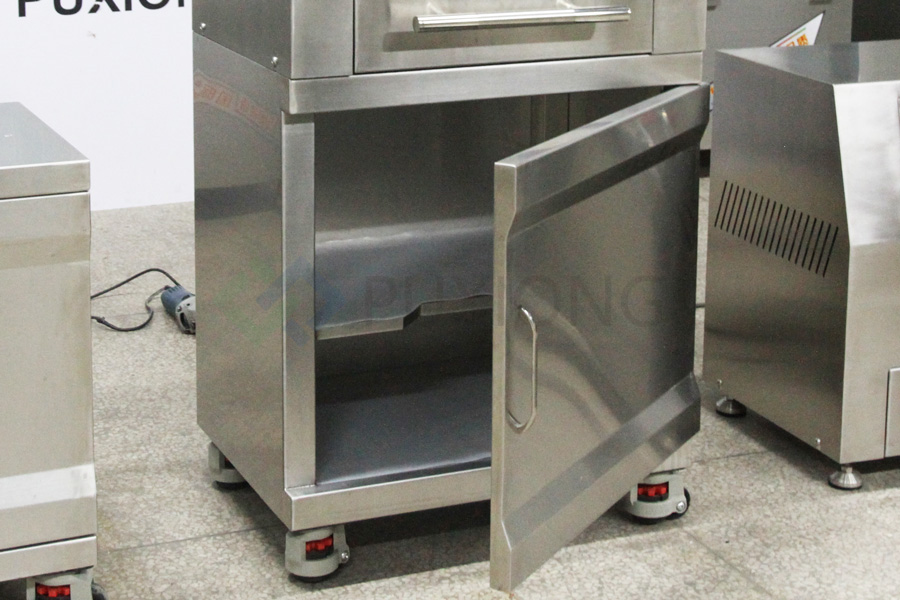

  • bottom empty box, can be used to put mould, products,etc
  • 30 groups parameters can be stored. No need retest all products, choose item no. to get related parameters directly.

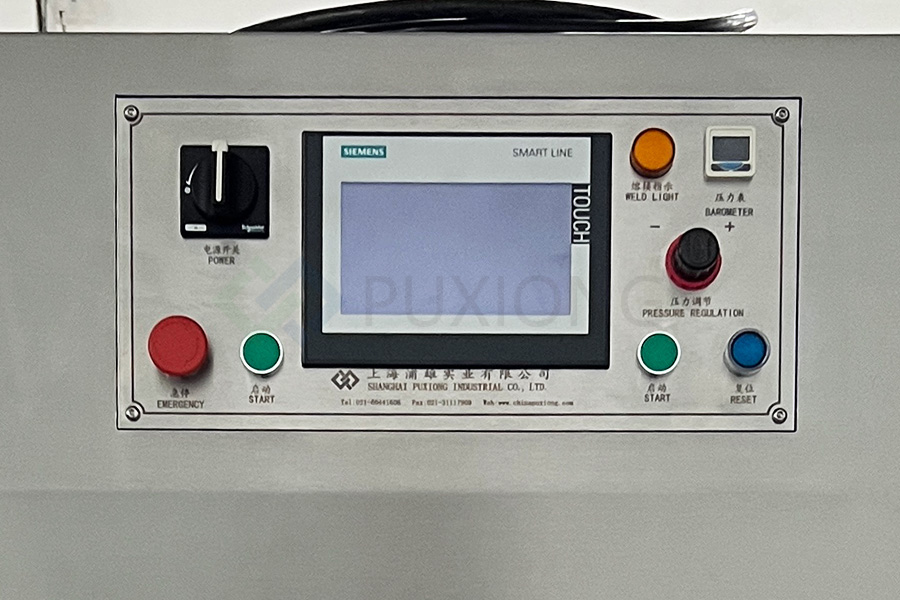

  • accurate control of time, temperature by PLC
  • alarm if there's any abnormal, automatic detection

Our company produces: Medical blister packaging machine, Medical bags welding machine, Storage bags sealing machine, 2D &amp,3D bags making machine, Blood bag welding machine, Medical pouch sealing machine, Sterilazation bag packaging machine, Sterilization bag sealing machine, Medical Aseptic Sealing Machine, Medical sterile sealing machine, Medical blister sealing machine,Bioprocessing Bags Welding Machine, 2D single-use bag welding machine, 3D single-use bag welding machine!
