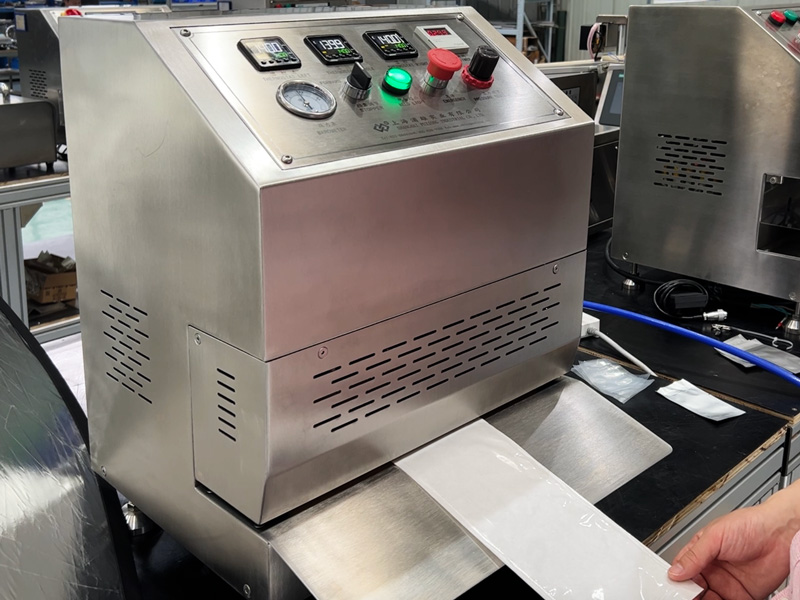

Medical Pouch Sealing Machine

Model: PXMP-D3501M

weld up to 350mm/time

weld up to 350mm/time

mechanical and desktop type

mechanical and desktop type

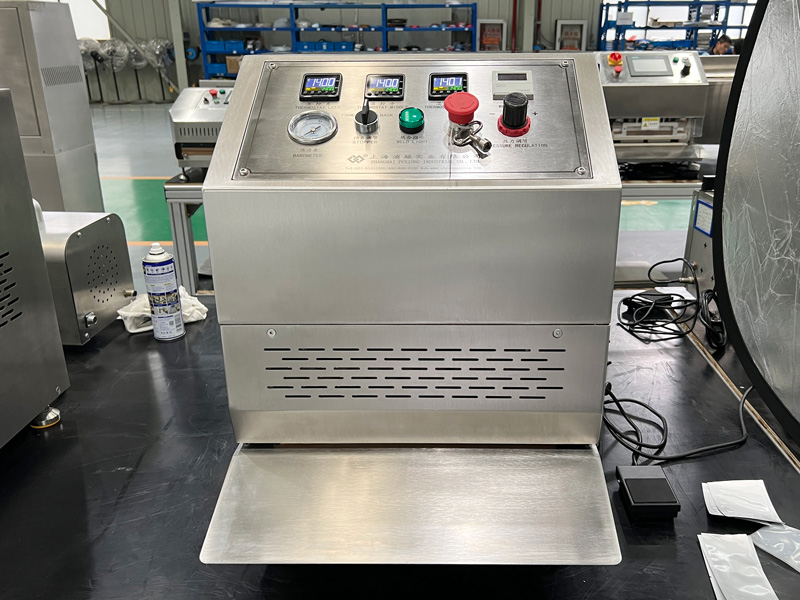

up and down heating way, higher precision

up and down heating way, higher precision

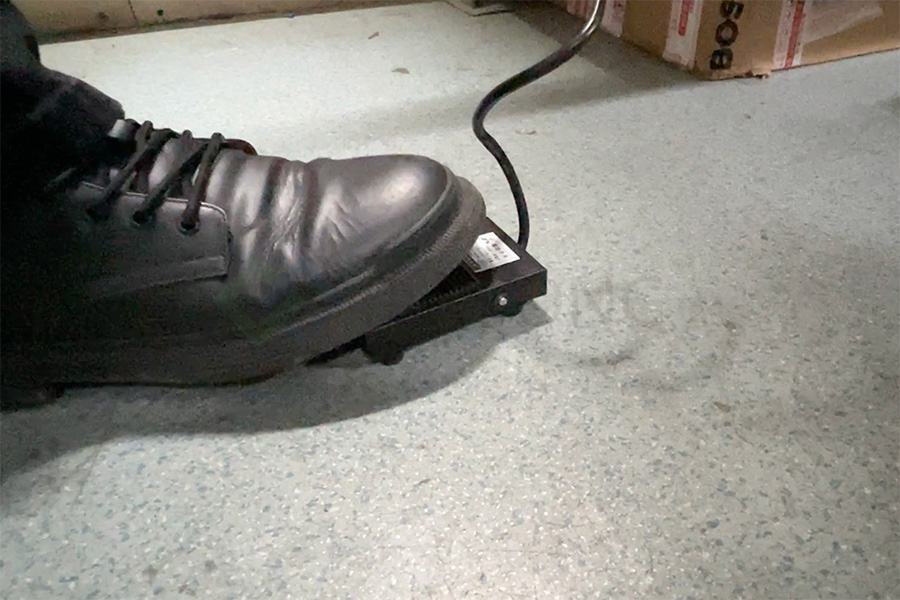

start with start button or foot pedal

start with start button or foot pedal

Specification Parameter

Model: PXMP-D3501M
Version: Mechanical (M), PLC ( P), Vacuum (V )

Application: Sealing pouches with single/double tyvek, tyvek & aluminum foil, double aluminum foil, etc.

Power: 1 KW
Voltage: 220V, customized
Pressure Mode: pneumatic, ≤0.6MPA adjustable
Heating Size: 350mm*10mm
Weight: 32 KGs

Overall Dimension ( L*W*H ): 500mm*450mm*400mm
