Bioprocessing Bags Welding Machine | 2D single-use bag welding machine | 3D single-use bag welding machine

Model: PXMP-F1008C

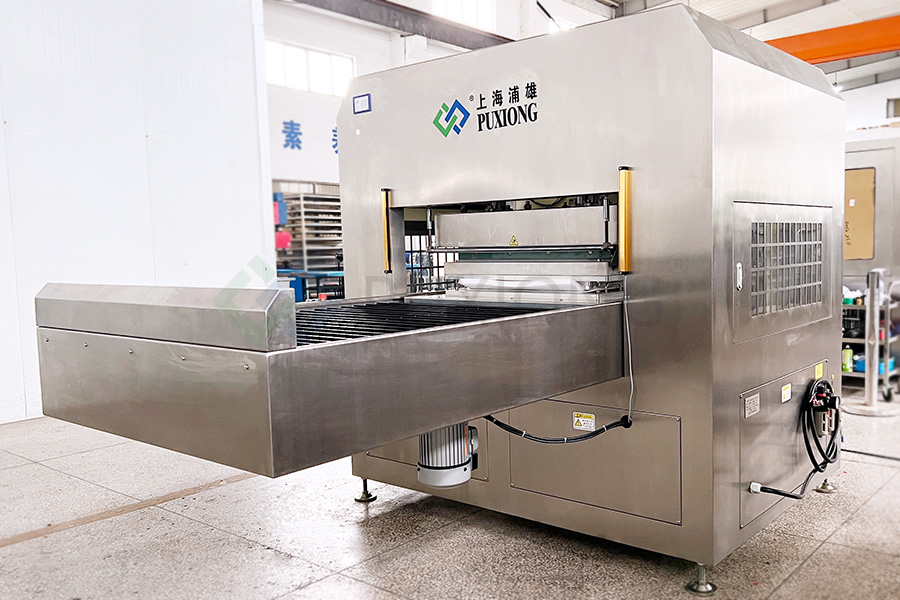

sliding table type, 2D single-use bags welding machine

sliding table type, 2D single-use bags welding machine

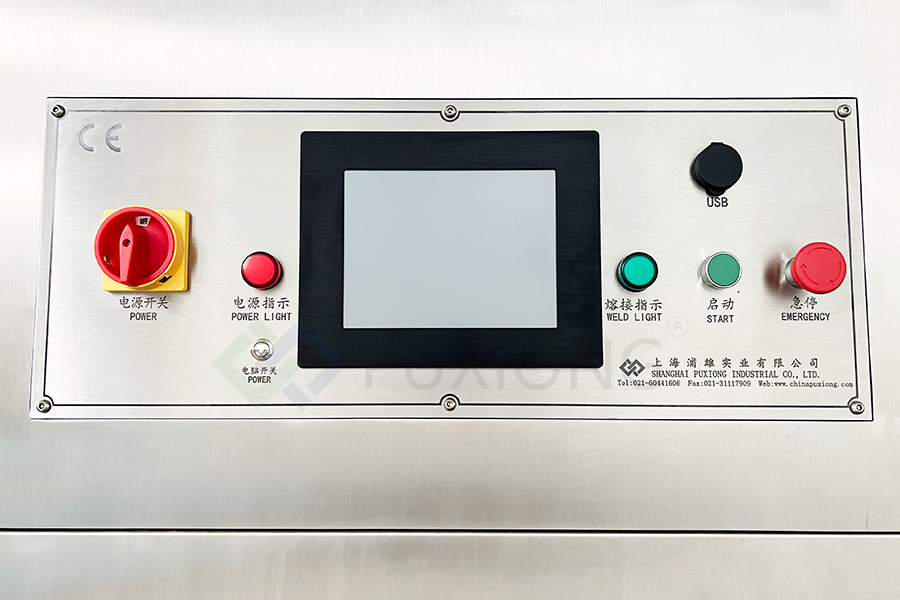

computer type

computer type

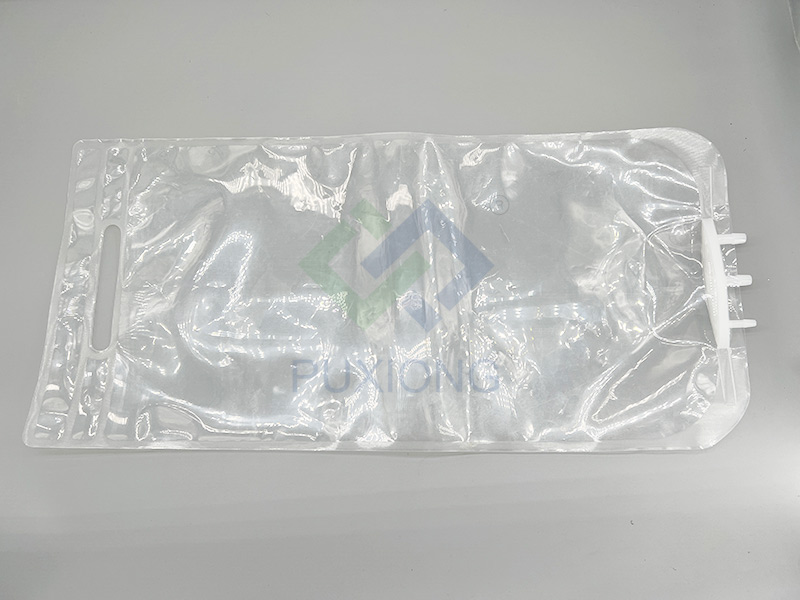

Two multi-layer co-extruded films are heat-sealed and welded at one time to form a bag

Two multi-layer co-extruded films are heat-sealed and welded at one time to form a bag

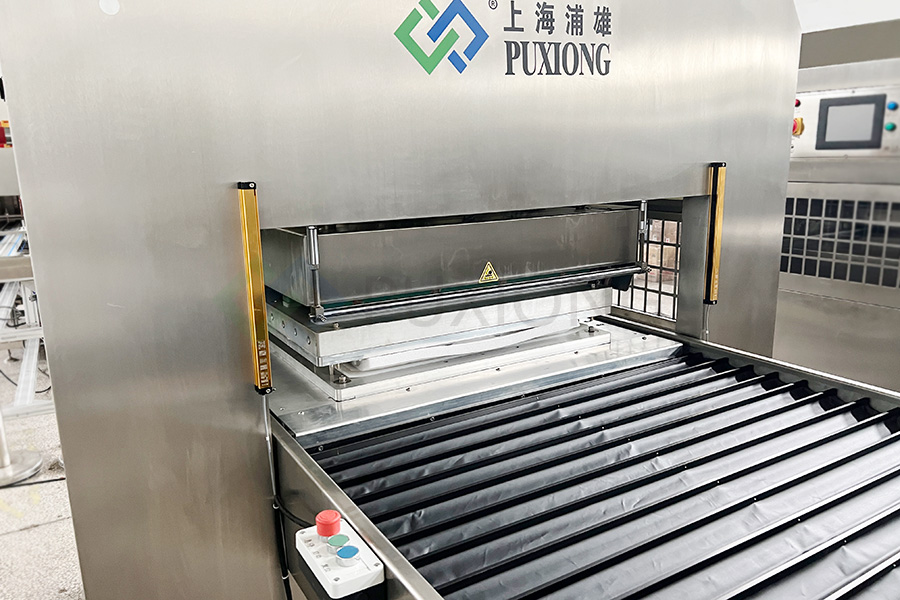

all parameters can be download directly, datas are traceable

all parameters can be download directly, datas are traceable

Specification Parameter

No.

Items

2D Bags Welding Machine

1

Material of Machine Body

SS 304

2

Model

PXMP-F1008C

3

Power

9.6 KW

4

Voltage

380V, 50Hz, 1P

5

Heating Plate Size

1000mm*800mm

6

Height of Worktable

920 mm

7

Overall Dimension

L2630mm*W1840mm*H1830mm

8

Weight

1800 KGs

description

* It is mainly suitable for flexible materials such as PVC/TPU/EVA/PET/PETG/LDPE, composite materials and co-extruded films, etc.

* Single person operates multiple stations, low labor cost.

* With curves for main parameters.

* All parameters can be download directly.

* Support long-distance control.

* Verifiable

* 3-level authority management

Our company produces: Medical blister packaging machine, Medical bags welding machine, Storage bags sealing machine, 2D &amp,3D bags making machine, Blood bag welding machine, Medical pouch sealing machine, Sterilazation bag packaging machine, Sterilization bag sealing machine, Medical Aseptic Sealing Machine, Medical sterile sealing machine, Medical blister sealing machine,Bioprocessing Bags Welding Machine, 2D single-use bag welding machine, 3D single-use bag welding machine!
