How are PVC blood bags produced by heat sealing

PVC (Polyvinyl Chloride) Blood Bag Thermal Fusion Production
The thermal fusion production of PVC blood bags combines material properties, process control, and precision equipment operation to ensure sealing integrity, sterility, and biocompatibility. Below are the core production steps and key considerations:

---

1. Raw Material Preparation

PVC Film Selection:

• Use medical-grade PVC compliant with pharmacopeial standards (e.g., USP Class VI or ISO 10993 biocompatibility testing) to ensure non-toxicity, chemical resistance, and high transparency.

Additive Control:

• Strictly regulate the ratios of plasticizers (e.g., DEHP alternatives), stabilizers, and lubricants to avoid compromising thermal fusion performance or leaching harmful substances.

Pre-Treatment:

• Clean, dry, and perform static elimination on the films to remove impurities or dust that could affect fusion quality.

---

2. Cutting and Molding

Automated Cutting:

• High-precision laser or die-cutting equipment shapes PVC films into predefined blood bag dimensions (e.g., rectangular or custom shapes), ensuring smooth, burr-free edges.

Pre-Folding and Positioning:

• Pre-fold films to form blood storage chambers or partitions, using robotic arms or molds to fix components in alignment for subsequent fusion.

---

3. Core Thermal Fusion Process

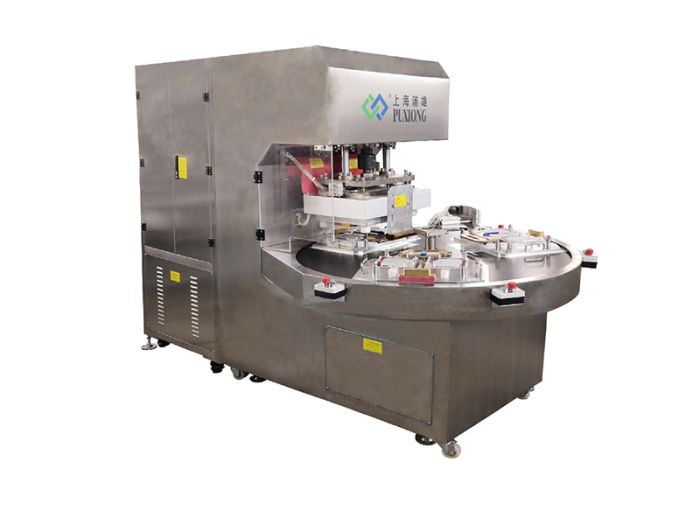

(1) High-Frequency (RF) Welding
Principle:

• High-frequency electromagnetic fields (typically 27.12 MHz) induce molecular vibration in PVC’s polar groups (e.g., chlorine atoms), generating heat for molecular fusion.

Advantages:

• Rapid heating with minimal thermal distortion.
• Suitable for multi-layer composites (e.g., PVC + PE membranes).
• High seal strength and pressure resistance (>0.3 MPa).

Equipment Parameters:

• Power: Adjusted based on material thickness (typically 500W–3kW).
• Time: 0.5–3 seconds per cycle.
• Pressure: 0.2–0.5 MPa to ensure tight contact.

(2) Hot Air or Infrared Fusion
Applications:

• Simple linear seals or localized repairs; cost-effective but less efficient than RF welding.

Control Parameters:

• Temperature: 180–220°C (adjusted for PVC formulation).
• Speed: 5–20 m/min, synchronized with temperature to avoid scorching or weak seals.

---

4. Key Quality Control Points

Seal Strength Testing:

• Use tensile testers to measure peel strength (≥15N/15mm per ISO 527).

Leak Detection:

• Negative Pressure Method: Submerge bags in water, apply vacuum (-80kPa), and observe for bubbles.

Sterility Validation:

• Post-fusion sterilization via ethylene oxide (EO) or irradiation, followed by endotoxin testing (≤0.5 EU/mL) and microbial load checks.

---

5. Automation and Smart Upgrades

Vision Inspection Systems:

• Integrated CCD cameras monitor seal width, uniformity, and defects (e.g., burns, burrs).

Data Traceability:

• RFID or QR codes track batch numbers, parameters, and test results for full traceability.

Robotic Assistance:

• Six-axis robots handle bag transfer, positioning, and tool changes to enhance flexibility and consistency.

---

6. Environmental and Safety Considerations

Exhaust Treatment:

• Install activated carbon filters or alkaline scrubbers to neutralize trace hydrogen chloride (HCl) from RF welding.

Material Recycling:

• Develop biodegradable PVC or closed-loop recycling systems to reduce medical waste.

---

Typical Production Workflow Example

1. Feeding: Unroll PVC film via tension control systems.
2. Printing: Laser-mark specifications, batch numbers, and sterilization labels.
3. Cutting: Laser-cut bag bodies and ports.
4. Assembly: Robotic installation of infusion tubes, needle ports, and protective caps.
5. RF Welding: Seal edges and ports.
6. Testing: Automated leak detection and visual inspection.
7. Packaging: Sterile packaging prior to sterilization and storage.
