The collaborative optimization path of material innovation for drainage bags and precise heat sealing technology

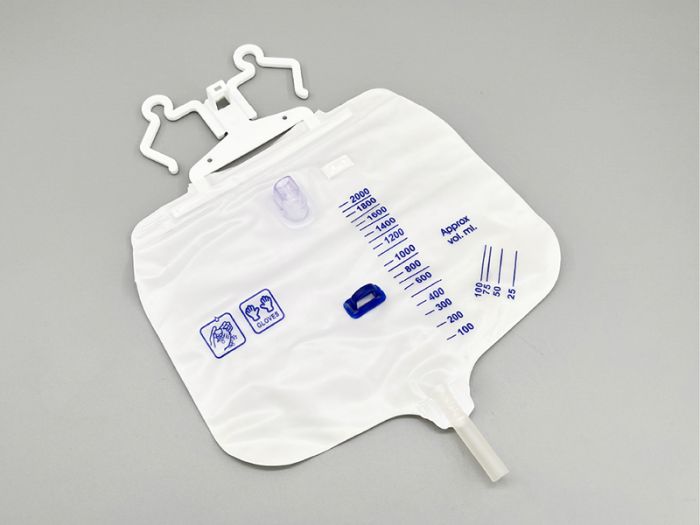

I. Iterative Upgrades and Performance Breakthroughs in Drainage Bag Materials
Driven by increasingly stringent demands for safety, functionality, and environmental sustainability in medical settings, material technologies for drainage bags have undergone continuous innovation. Below is an analysis of new materials and composite solutions:

1. Bio-based TPU
Technological Breakthroughs:

• Derived from renewable resources (e.g., castor oil), reducing carbon footprint by 60% compared to traditional petroleum-based TPU (ISO 14067 certified) while maintaining medical-grade performance.
  Core Advantages:
• Biocompatibility certified by USP Class VI with a cytotoxicity rating of Grade 0.
• Enhanced low-temperature toughness (brittleness temperature ≤ -40°C), suitable for extreme-environment transportation.
  Applications:
• Eco-friendly medical consumables, battlefield emergency equipment.

2. DEHP-free Modified PVC
Technological Breakthroughs:

• Uses eco-friendly plasticizers (e.g., triethyl citrate, TEC) to replace DEHP, achieving migration levels <0.1% (EU EN 71-3 standard).
  Core Advantages:
• 30%-50% lower cost than TPU, ideal for developing markets.
• Optimized balance of transparency and flexibility (Shore hardness A 75±5) for clinical observation.
  Limitations:
• Requires UV protection during long-term storage (light exposure accelerates plasticizer leaching).

3. Silicone-TPU Composite Film
Technological Breakthroughs:

• Co-extrusion process forms a silicone (inner layer) + TPU (outer layer) structure, combining bio-inertness with mechanical strength.
  Core Advantages:
• Low surface energy of silicone layer (contact angle >110°), reducing protein adhesion and infection risks.
• TPU layer improves puncture resistance by 50%, extending service life.
  Applications:
• Intensive care drainage systems, tumor chemotherapy fluid collection.

---

II. Intelligent and Green Transformation of Precision Heat Sealing Processes
Heat sealing accuracy and efficiency directly impact drainage bag quality. Key advanced technologies include:

1. Laser-Assisted RF Welding (LA-RF Welding)
Principle:

• Preheats welding zones with low-power laser (power density <10 W/cm&sup2;) before RF sealing, reducing dielectric loss differences for uniform fusion.
  Advantages:
• Weld strength fluctuation narrowed from ±15% to ±5% (ASTM F88).
• Heat-affected zone depth reduced by 40%, preventing material degradation.
  Case Study:
• A global brand reduced leakage rates from 0.3% to 0.02% using this technology.

2. Cold Pressure Pulse Welding (CPP Welding)
Principle:

• Generates Joule heat via high-frequency pulsed current (1-10 kHz) and instant high pressure (1-2 MPa) at <80°C.
  Advantages:
• Suitable for heat-sensitive materials (e.g., drug-coated drainage tubes).
• Welding cycle reduced to 0.2 s, with 70% lower energy consumption.
  Limitations:
• Higher equipment costs due to customized power systems.

3. AI Vision Detection with Closed-Loop Control
Principle:

• High-speed cameras (≥1000 fps) capture weld images in real time; deep learning models (e.g., ResNet-50) detect defects (e.g., bubbles, weak welds) and adjust parameters dynamically.
  Advantages:
• Defect detection rate >99.5%, false positives <0.5%.
• Reduces manual inspection costs and boosts production efficiency.

---

III. Material-Process Synergistic Optimization Strategies
1. Dynamic Matching Model

• Builds a database linking material properties (melt flow index, dielectric constant) with sealing parameters (frequency, pressure, time), using ML algorithms to generate optimal solutions.
  Case: A company improved product yield from 92% to 98.7%.

2. Microstructure Design

• Honeycomb or wave-shaped microstructures in weld zones increase contact area, improving peel strength by 30%-50% versus flat welds.

3. Eco-Friendly Additives

• Develops water-based barrier coatings (e.g., PVA-nanoclay composites) to replace solvent-based coatings, reducing VOC emissions by 90%.

---

IV. Future Trends
1. 4D-Printed Heat Sealing Molds

• Shape memory polymer (SMP) molds auto-adjust cavity dimensions for rapid model switching.

2. Blockchain Traceability Systems

• On-chain records for material batches, sealing parameters, and QA data enable full lifecycle traceability.

3. Self-Healing Sealing Technology

• Microencapsulated repair agents embedded in welds auto-release upon crack formation to extend product lifespan.

---

Conclusion
Drainage bag materials and heat sealing processes are evolving from "single-performance optimization" to "system-level synergy." The integration of bio-based materials, intelligent processes, and green technologies not only enhances product competitiveness but also drives sustainable development in the medical consumables industry. As material science and smart manufacturing converge, drainage bags will advance toward greater safety, efficiency, and environmental sustainability.
